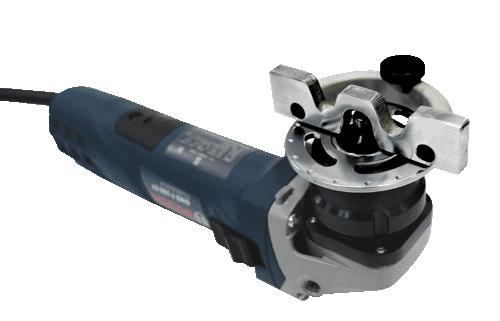

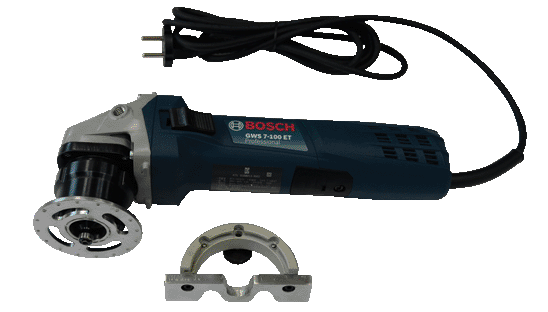

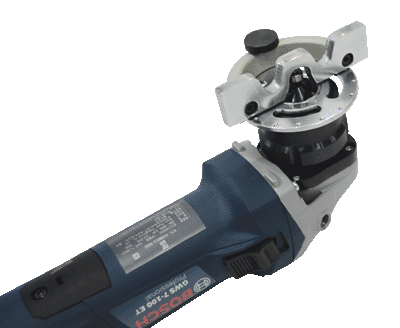

All-Purpose Chamfer
PATENT NO : 10-0901160
Available smooth beveled any steel material with a strong cutting.
To enhance the perfection of a processing-completed structure,
as an instrument to remove sharp part of the structure including the edge,
this instrument has complemented the existing bevellers. Even a novice can control the bevel volume.
You do not need to carry a screwing tool, which was required to control bevel volume in the past, and you can easily control your desired bevel volume with simple hand movement.
Also, the consuming cut tip can be easily acquired in the market. All in all, you can save working hours, and enhance product reliability with high quality work.
All-Purpose Chamfer
- Smooth beveling can be conducted for any steel materials with robust cutting.
- Repair becomes easier with simplification of components.
- No extra tool is necessary to control bevel volume.

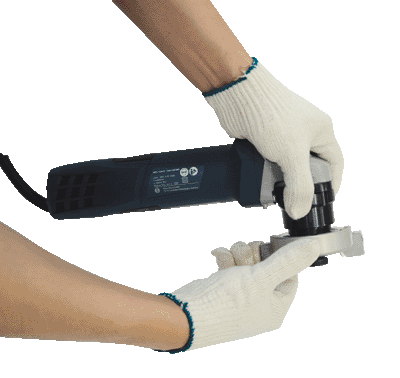

- With simple hand movement, you can feasibly control your desired bevel volume.
- You can easily purchase the tip (insert) for cutting in the market. - The selection of various inserts is possible, depending on the basic material.
Model No. MIR-T905-SA |
||
|
|
|
We have designed this instrument for the public without expertise to repair through simplification of components.
To control necessary bevel volume, pull the stopper, and turn the guide
(You don’t need extra tool to control the bevel volume).
Compatibility has been enhanced with the use of easily obtainable cutting blade. However, if the basic material is glass or stone, please use
MIR-T905GA.
MIR-T905GA |
||
 |
 |
 |
